Notes about Android and IPsec on Linux

Here's some personal notes about the excellent Jeff Sharkey's article Deploying a pure-IPsec PKI VPN server for Android devices

My setup is a little bit different to that of Jeff, I have a 1Gbps fiber plan, a Linux server natted behind my ISP's router and my IPsec VPN server is running on a Linux container (LXC), so this container doesn't have a public IP address. The OS used in all the servers is Ubuntu Trusty 14.04. On the VPN client side I'm using Android 6.0 Mashmallow.

Server configuration

In addition to installing the packages

$ sudo apt-get install ipsec-tools racoon

I also installed the following packages

$ sudo apt-get install iptables openssl tcpdump

When installing the Debian racoon package, you have to chose the type of configuration, in my case I chose the direct mode.

I had to add 2 new port forwarding rules on my ISP's router to sent the traffic UDP on the ports 500 and 4500 to my Linux server, and on it I had to the same thing using iptables

$ sudo iptables -t nat -I PREROUTING -p udp -m udp --dport 4500 -j DNAT --to-destination
$ sudo iptables -t nat -I PREROUTING -p udp -m udp --dport  500 -j DNAT --to-destination

Here the IP address is assigned to the container running the IPsec VPN server.

In the /etc/racoon/racoon.conf file I had to change the public IP address used by Jeff by the container's private IP address:

listen {

` For more details about the configuration options you can see the racoon.conf's man page.

About the RSA keys, don't forget to convert your server's private key into RSA format using

$ openssl rsa -in myserver.key -out myserver-rsa.key

As the documentation says the output filename should not be the same as the input filename, so you also need to change it in your /etc/racoon/racoon.conf.

Android configuration

Here some details when configuring your VPN profile on your phone:

  • You don't need to install the adb tool to push your .p12 certificate file, you can download it from an URL, Android will detect the format and it will install it using the Android's certificate installer.
  • If you want to use the Always-on VPN option, you need to specify a server's public IP address (instead of its fqdn) and you also must specify an IP address for the DNS servers.


If you find some problems, you can always take a look at the /var/log/syslog file and use tcpdump to inspect your network traffic.

It's also highly recommended to read the Section 2 of the IPsec HOWTO to understand the theory behind IPsec and its Linux Kernel implementation.

DNS resolution for LXC in Ubuntu 14.04

Working with LXC (Linux containers) in Ubuntu is very easy but by default you need to know the IP address of new containers to connect to services (ssh, database, webserver, etc.) running on them.

With some minor configuration you can connect to your containers using a domain name like that

$ sudo lxc-create --name container1
$ sudo lxc-start --name container1 --daemon
$ ssh ubuntu@container1.lxc

In Ubuntu 14.04 Trusty Tahr, lxc-create use by default the Ubuntu template and it will create a user called ubuntu, to change it take a look at the template options with lxc-create -t ubuntu -h.

To set up the internal DNS resolution on your machine, you must edit /etc/default/lxc-net and uncomment the line


Also you need to create the file /etc/NetworkManager/dnsmasq.d/lxc.conf with the following content


This will redirect DNS queries for *.lxc hosts to the dnsmasq instance running on that manage DHCP and DNS for containers.

After that restart networking related services

$ sudo service lxc-net stop
$ sudo service lxc-net start
$ sudo service network-manager restart

For the lxc-net service you can't use the restart command, you must use the stop/start commands to reload the configuration.

If you had some containers running, do not forget to restart them

$ sudo lxc-stop --name container1
$ sudo lxc-start --name container1 --daemon

Finally to check that everything works you can use, for example, the ping command and you must see something like this

$ ping -c 3 container1.lxc
PING container1.lxc ( 56(84) bytes of data.
64 bytes from icmp_seq=1 ttl=64 time=0.072 ms
64 bytes from icmp_seq=2 ttl=64 time=0.125 ms
64 bytes from icmp_seq=3 ttl=64 time=0.113 ms

--- psql.lxc ping statistics ---
3 packets transmitted, 3 received, 0% packet loss, time 2000ms
rtt min/avg/max/mdev = 0.072/0.103/0.125/0.024 ms

Comment utiliser les photographies aériennes de Nantes avec Leaflet

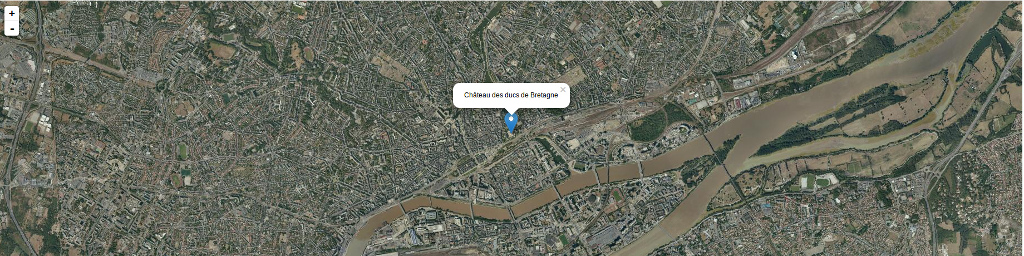

Screenshot d'une carte interactive Ce mini post explique comment on peut utiliser les Photographies aériennes de la Loire-Atlantique pour créer des cartes interactives avec Leafletjs.

Les Photographies aériennes de la Loire-Atlantique font partie des jeux de données Open Data de la région des Pays de la Loire et pour utiliser et accéder aux données il faut acepter leur licence.

Pour accéder aux images le site délivre un flux WMS (Web Map Service) qui peut être intégré facilement avec Leaflet en utilisant une TileLayer.WMS. Par exemple avec quelques lignes de HTML on peut générer une carte et ajouter un marqueur :

    <link rel="stylesheet" href="" />
        #map { height: 480px; }
    <div id="map"></div>
    <script src=""></script>
        var map ='map').setView([47.2162, -1.5492], 14);
        var laURL = ""
        var loireAtlantique = L.tileLayer.wms(laURL, {
            layers: 'ORTHO44:jp2',
            format: 'image/jpeg',
            attribution: "Open Data D\u00e9partement de Loire-Atlantique"
        var marker = L.marker([47.2162, -1.5492]);
        marker.bindPopup("Ch&acirc;teau des ducs de Bretagne").openPopup();


voici le résultat avec le code de l'exemple.

Si on a besoin de modifier les images livrées par le WMS ou de servir les images depuis notre propre serveur web de façon statique on peut utiliser par exemple landez qui permet de télécharger les images (tiles) d'une zone particulière de la carte, les modifier et les héberger dans un répertoire de notre serveur web.

Disclaimer : ma langue maternelle est l'espagnol, donc n'hésitez pas à me corriger s'il y a des fautes d'orthographe :)

Testing your REST client in Python

When you start to write a client for a REST API in Python at beginning it's easy to test it using a Python interactive session, but at some point you'll have to write tests, at that moment you'll see that it's not easy to test your code against live data from the RESTful web API. You may encounter various problems, for example, you can have network problems when tests run, the web server may be temporarily down or tests become slow due to network latency.

A solution to this problem is to use Mock objects, they simulate the behavior of your real objects in a controlled way, so in this case a mock object may simulate the behavior of the urlopen function (from the urllib2 module) and return something like an HTTP response (a file-like object) without hit the real REST API. The file-like object returned may map a RESTful resource to a file which contains a pre-saved response from the real web server.

To show the idea I wrote a simple REST client for the Github API. Here's what the directory structure looks like

$ tree project
└── tests/
    └── resources/
        └── users/
            └── test_user

3 directories, 3 files

I use nose as test runner and Foord's Mock library to create mock objects. You can install them into a virtualenv by typing

$ pip install nose mock

Here's the content of the file

import json
from urllib2 import urlopen

class ClientAPI(object):
    def request(self, user):
        url = "" % user
        response = urlopen(url)

        raw_data ='utf-8')
        return json.loads(raw_data)

As you can see, it calls urlopen, parse the JSON data from the HTTP response and return a Python dictionary.


"On an open Internet, where all links are created equal, good ideas win. Anyone, anywhere can share an idea that can be seen by millions."
— Alexis Ohanian, Reddit co-founder

Mario Bros in Nantes Mario Bros in the streets of Nantes. Can you guess where I found it?

How to use the Percolate API with Python

Recently, I've been working on migrate a Django project from Solr to Elasticsearch, both of them are great search servers based on Apache Lucene, but Elasticsearch has an interesting feature called Percolate, that's missing on Solr.

Percolate is the reverse operation of indexing and then searching. Instead of sending docs, indexing them, and then running queries. One sends queries, registers them, and then sends docs and finds out which queries match that doc.

So, here an example of percolation from the Percolate API documentation with Python. See the setup section to known how to setup Elasticsearch and get it running.

First, you'll want to install pyelasticsearch

$ pip install pyelasticsearch

Open a terminal and type python to use the Python interactive console

>>> from pyelasticsearch import ElasticSearch
>>> es = ElasticSearch('http://localhost:9200')

You need create a new index, named test

>>> es.create_index('test')
{u'acknowledged': True, u'ok': True}

Now, you must specify a query to index. As the _percolator index is also an index, we use the index method to index it, doc_type is the name of the index created before (test) and kuku is our query id

>>> query = {'query': {'term': {'field1': 'value1'}}}
>>> es.index(index='_percolator', doc_type='test', doc=query, id='kuku')
{u'_type': u'test', u'_id': u'kuku', u'ok': True, u'_version': 1, u'_index': u'_percolator'}

Finally to test a percolate request we need call the percolate method with a document

>>> doc = {'doc': {'field1': 'value1'}}
>>> es.percolate(index='test', doc_type='type1', doc=doc)
{u'matches': [u'kuku'], u'ok': True}

We can see that kuku matches with our document.

For more details see the Elasticsearch's reference API and the documentation of pyelasticsearch.
